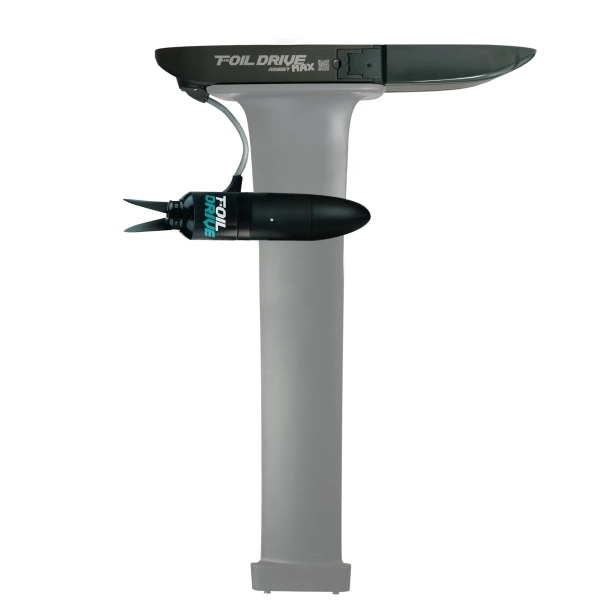

The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.
Providing an optimized blend of power, endurance, and weight, The Assist MAX unlocks longer surf sessions, reliable flatwater takeoffs, and easy upwind and downwind riding, and unlimited progression regardless of the conditions.
The MAX is best suited for riders under 100 kg using small to midlength boards and their preferred foil setups, offering a single system that performs across surf, wing, downwind, wake, flatwater, and light eFoiling.
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
This advanced motor is designed for riders who demand more torque, thrust, and runtime, delivering peak performance without compromising compatibility. Through improved efficiency, riders can experience up to 19% more runtime.
Paired with the MAX High Power Battery, riders gain the 19% added capacity of the battery. This means, with the High power Battery AND the High power Motor, riders can experience 40-45% more runtime!
Key Benefits of the High Power V2 Motor
- Unmatched Low-End Torque: Perfect for heavier riders or smaller boards or foils, the High Power Motor delivers effortless take-offs with power to spare.
Longer Runtimes: Thanks to its superior torque, you’ll need less throttle input, giving you significantly extended ride times.
- Increased Thrust: Feel the extra push when you need it most—more thrust means more versatility across all foiling disciplines.
Smoother, Quieter Performance: Enjoy a seamless ride with enhanced efficiency and reduced noise.
- Just 10mm longer and 160g heavier than the Standard v2 Motor, the performance gains make it a game-changer despite the larger size. It’s like fine-tuning your wing or board for optimal results!
- Seamless Compatibility. The High Power Motor is fully compatible with your Gen2 setup, requiring the v2 Removable Cable and v2 Puck. Pair it with a 2 or 3 Blade Propeller, we recommend the 3 blade for maximum performance.
Note: both v2 motors are not compatible with integrated masts.
This is under development. This upgrade isn’t for everyone - lighter riders may not need the extra power - but those who do can experience unparalleled efficiency and versatility. Whether you want a smoother take off, longer rides, or simply the best performance available, the High Power Motor is your ticket to the ultimate foiling adventure.
Tech Specs
icon
- System Nominal Voltage: 40V
- Battery Capacity Range: 332-594Wh
- Max Thrust: 29kg / 63.9lbs
- Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
- Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
- Dimensions with Battery: L525x W125 x H50mm
- Horsepower: 2.36HP
- App Compatibility: Foil Drive App, Android and IOS
- Water Rating: IP68 Water and Dust Resistance
What’s Included
icon
*Choice of Battery with Lipo Bag*
*Choice of motor system*
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
